Brand  Visaton Vendor Part Number  VS-DL18/1R9016  EAN Number  4007540501062

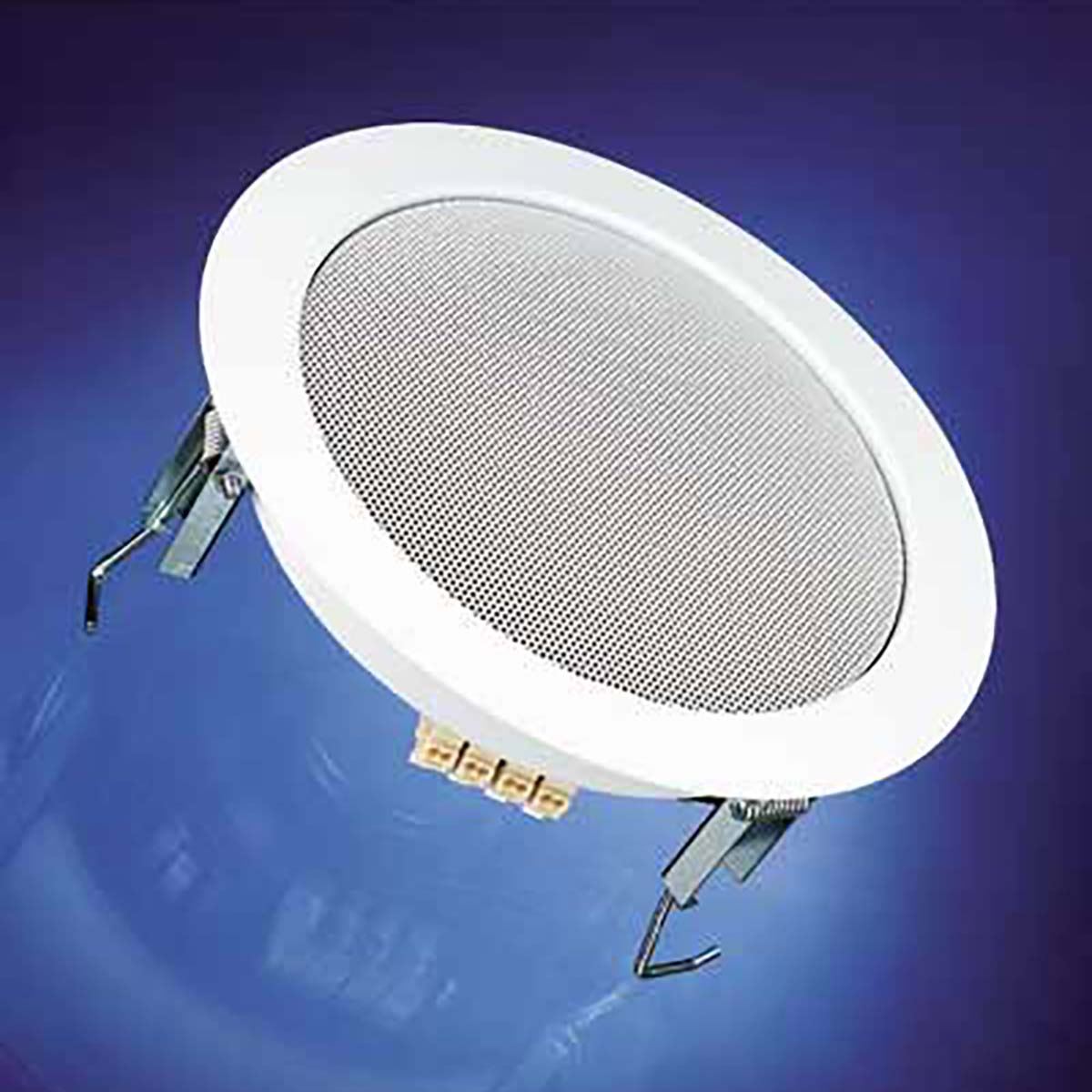

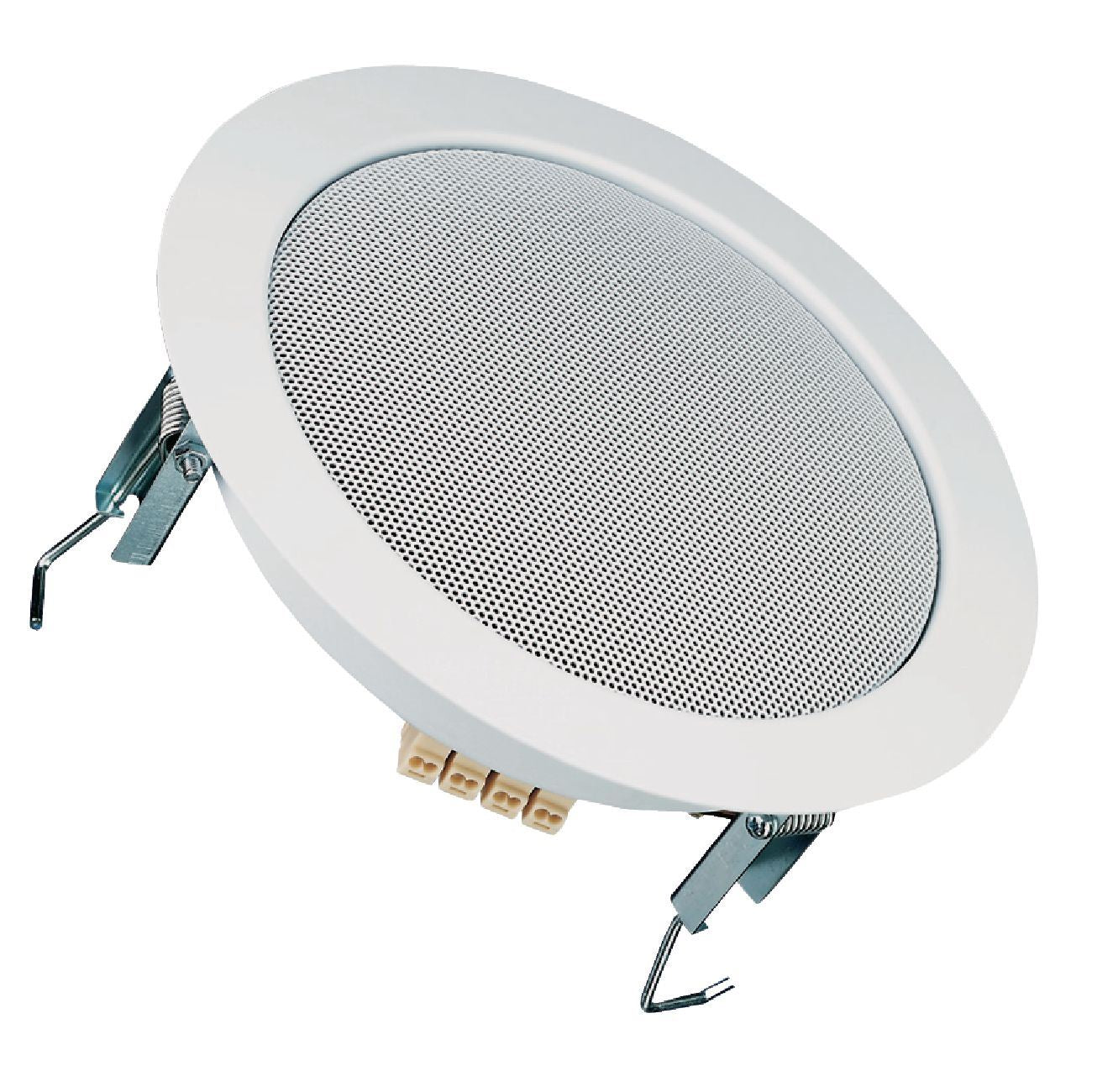

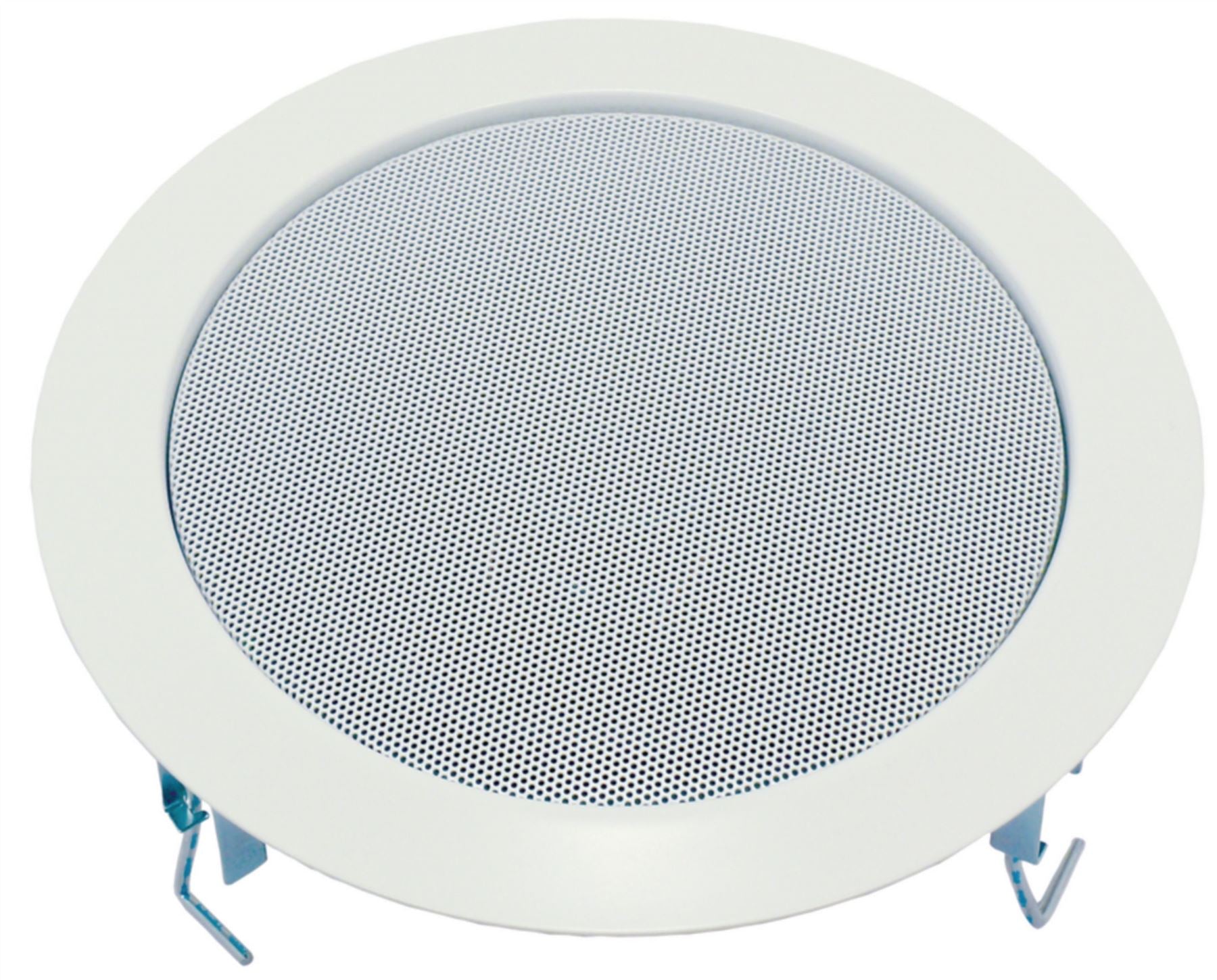

17 cm (6.5") ceiling speaker with corrosion free grille (RAL 9016), suitable for the installation in suspended ceilings of any material.
Equipped with a full-range driver.
Quick snap-in mounting due to round ceiling cut-out through which the speaker with transformer and mounting ring can be installed.
A push-terminal block allows a quick and easy connection to the 100-V-network including the eventually necessary level adjustment.
A quick-mounting bayonet connection provides an easy installation of the grille.
Speaker cabinet systems for concrete ceilings are available from KAISER, 58579 Schalksmühle, Germany.
The KompaX cabinet series is suitable for our ceiling speakers.
Some additional front parts maybe necessary (front rings, mineral fibreboard etc.).
More details are available on the Homepage of KAISER (Housing for lamps and loudspeakers).
In order to get more detailed information, press the "Technical information" button of the particular product.
Fire protection housing systems (F30) are also available (FlamoX).

Typical applications
• For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.
Details

17 cm (6.5") ceiling speaker with corrosion free grille (RAL 9016), suitable for the installation in suspended ceilings of any material. Equipped with a full-range driver. Quick snap-in mounting due to round ceiling cut-out through which the speaker with transformer and mounting ring can be installed. A push-terminal block allows a quick and easy connection to the 100-V-network including the eventually necessary level adjustment. A quick-mounting bayonet connection provides an easy installation of the grille.

Typical applications:
• For suspended ceilings in shops, private accomodation, bathrooms etc.

Case Quantity

12

Dimensions
