Nedis

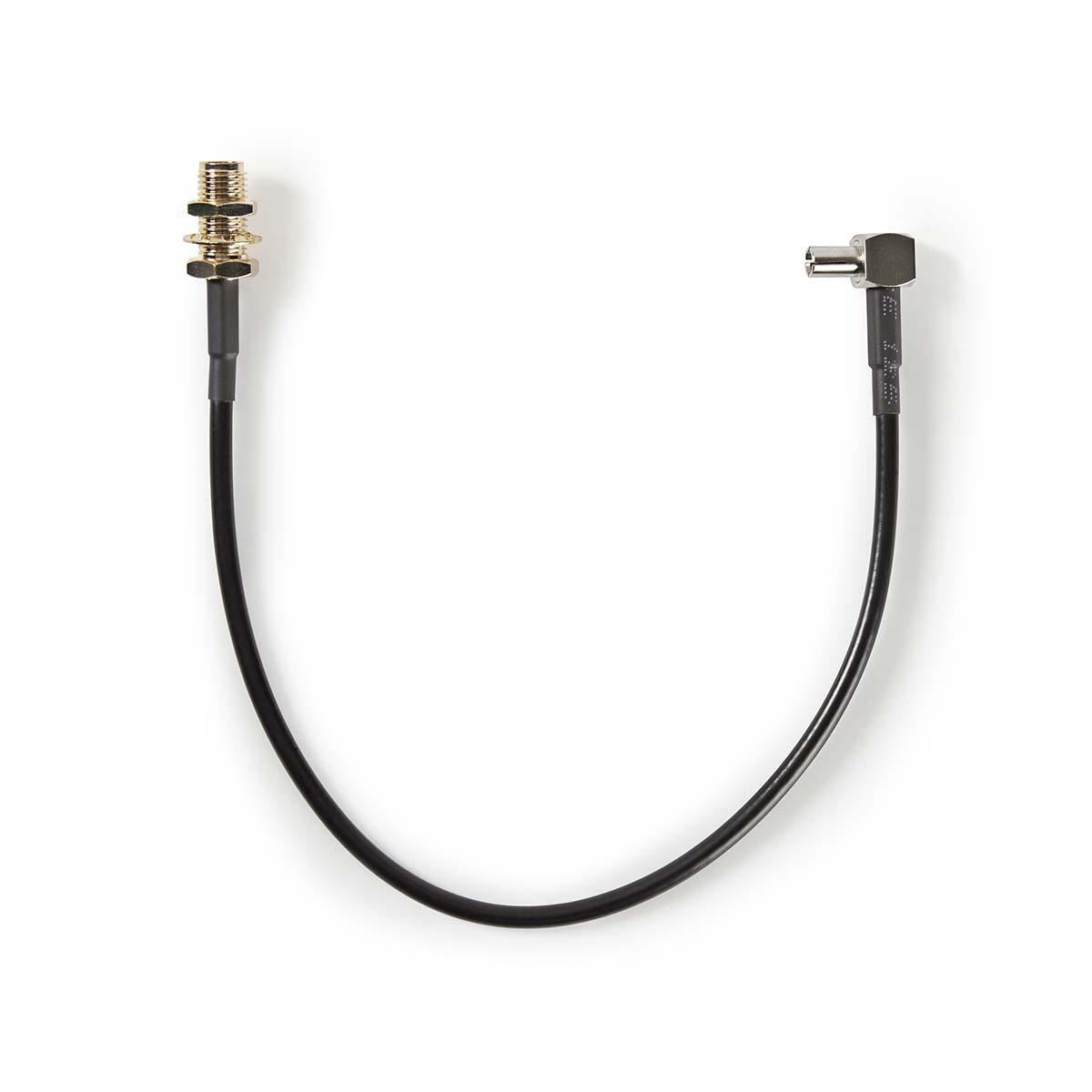

Nedis CSGB02125BK02 | SMA Cable | SMA Female | TS9 | Gold Plated | 50 Ohm | Single Shielded | 0.20 m | Round | PVC | Black | Box

£6.99 GBP
£6.99 GBP £6.99 GBP
Sale Sold out
Shipping calculated at checkout.

Brand  Nedis Vendor Part Number  CSGB02125BK02  EAN Number  5412810425549

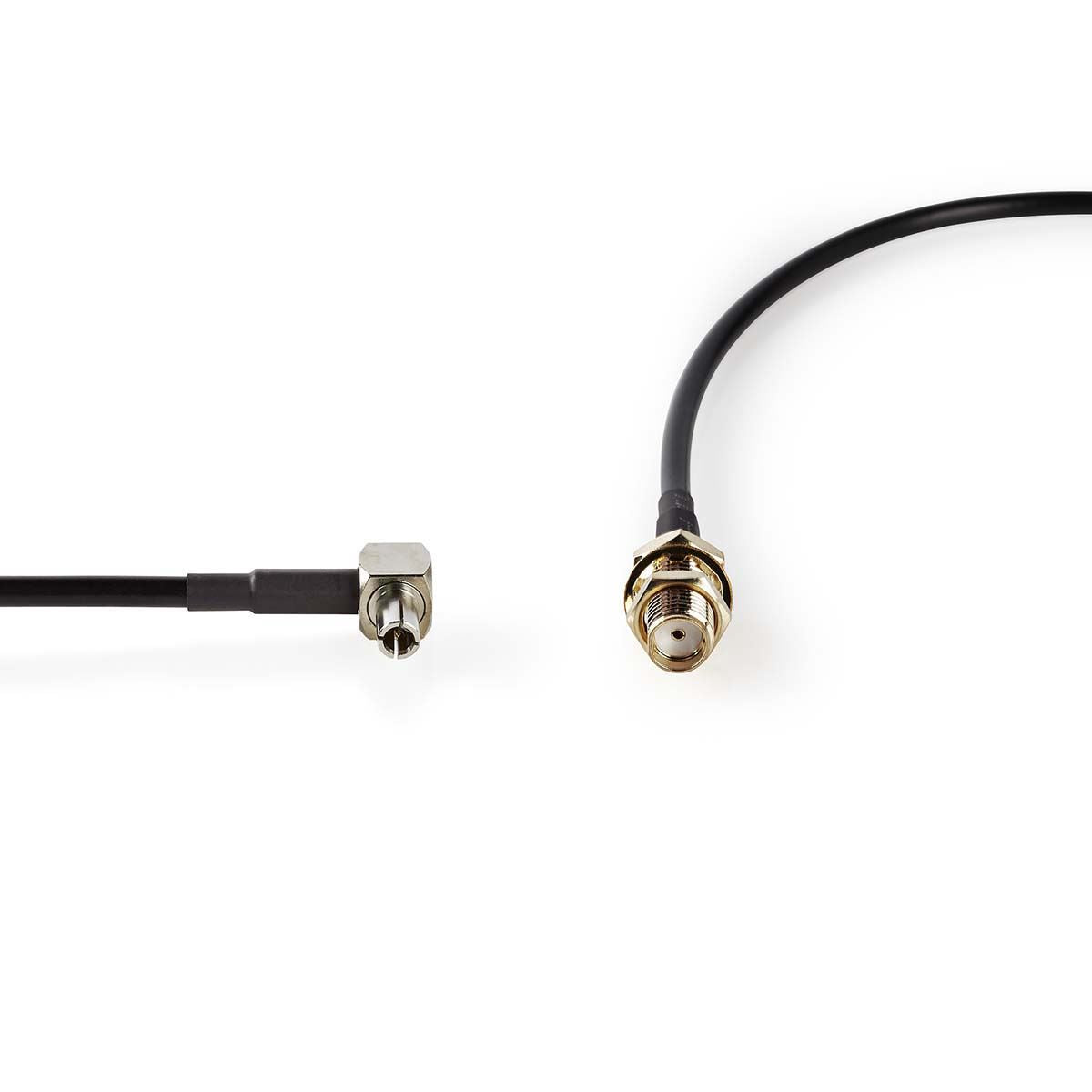

Use this adapter cable to establish a connection between an SMA male connector and a TS9 female connector. The cable is also suitable for panel mounting.
Details


SMA adapter cable

Case Quantity

10

Dimensions

Length 20
Width 55
Height 230
Weight 0.02 Kg

Technical Specifications

Part Number CSGB02125BK02

Products in Package 1 pcs

Packaging Box

Connector-A SMA Female

Connector-B TS9

Cable type SMA

Connector Plating Gold Plated

Cable Design Round

Cable Length 0.20 m

Cable Mantle Material PVC

Conductor Material Bare Copper

Connector Design Side-A Angled 90°

Connector Design Side-B Straight

Connector Material Metal

Conductor Diameter 7 x 0.16 mm

Shielding Single Shielded

Impedance 50 Ohm

Product RRP £6.99 View full details
