Nedis

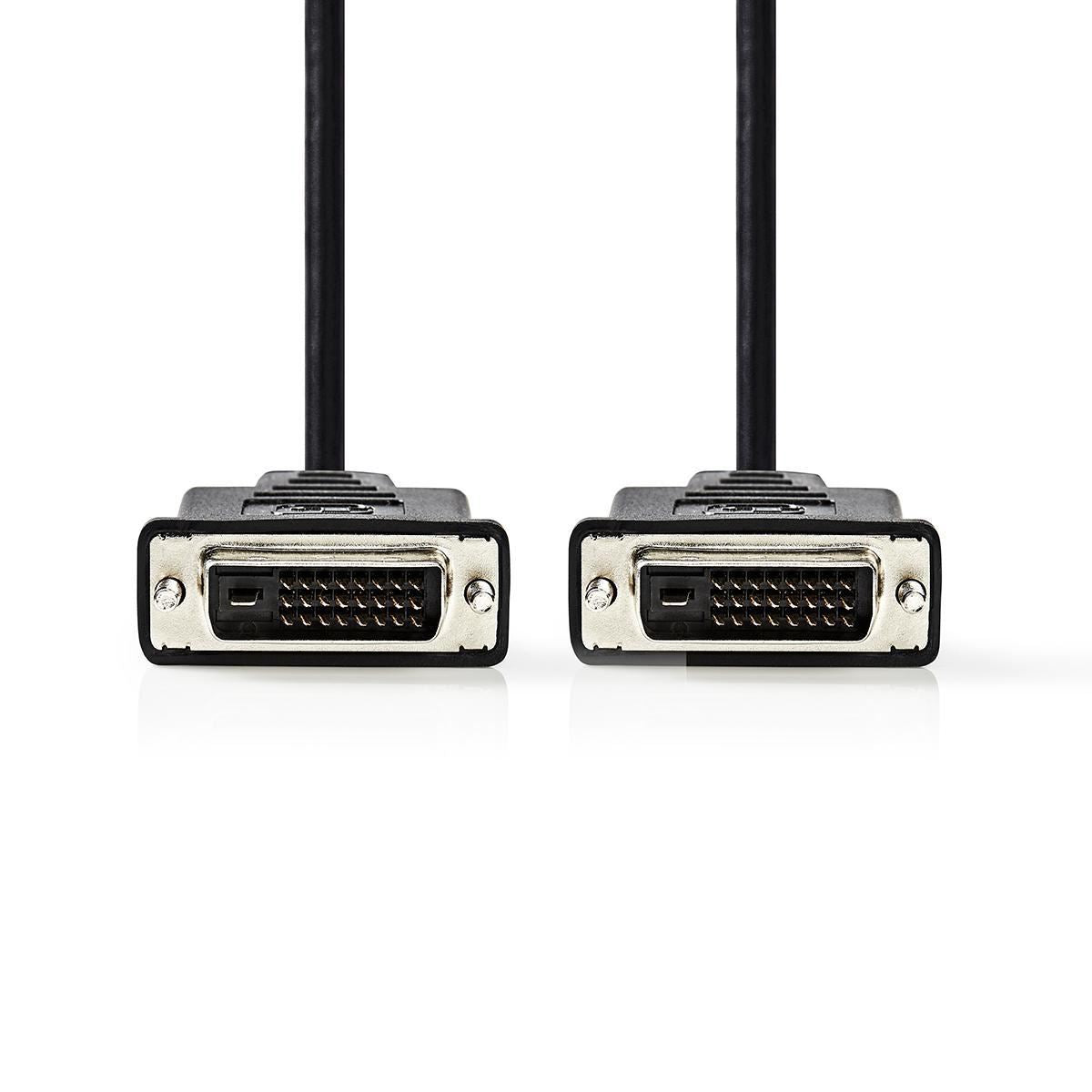

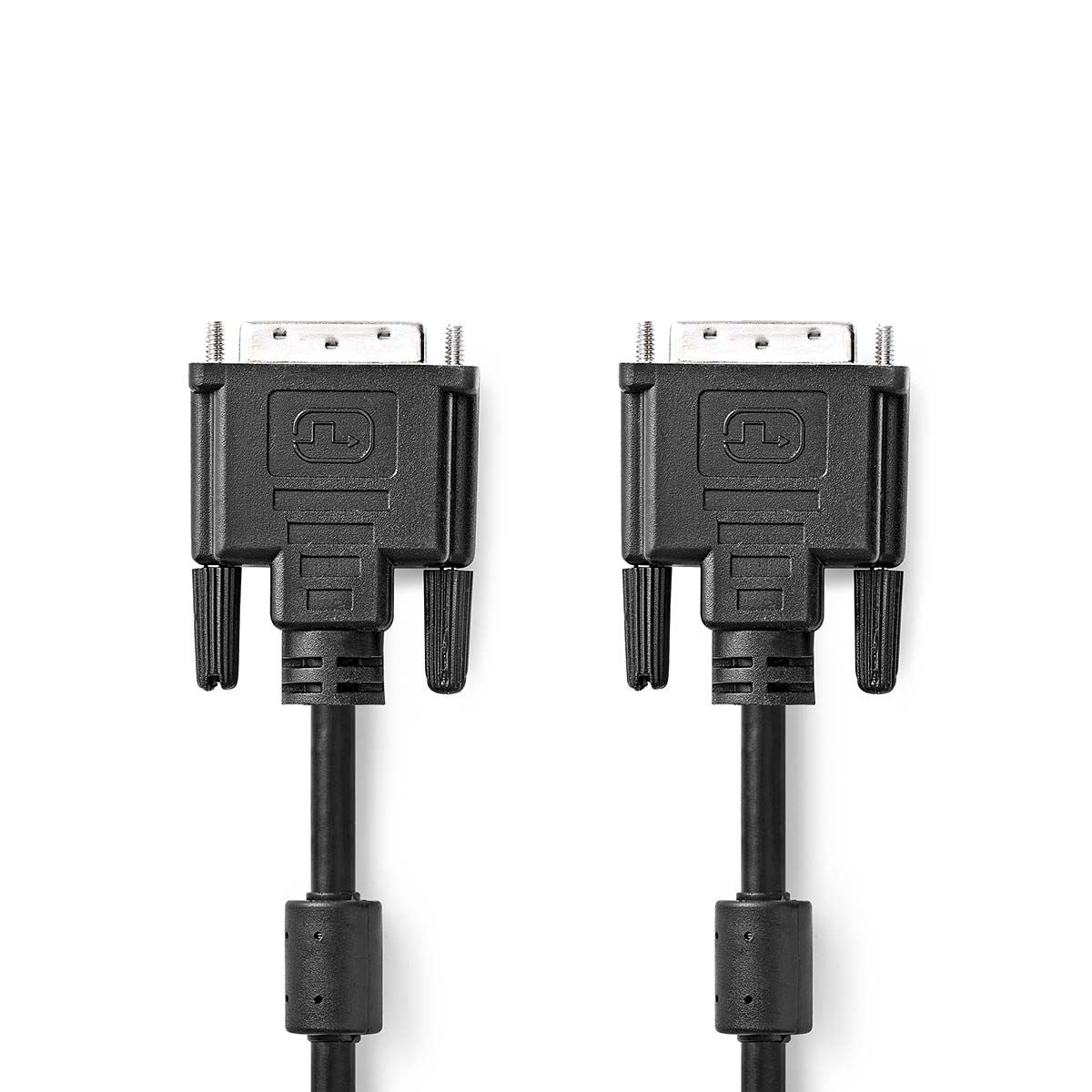

Nedis DVI Cable | DVI-D 24+1-Pin Male | DVI-D 24+1-Pin Male | 2560x1600 | Nickel Plated | 3.00 m | Straight | PVC | Black | Envelope
Couldn't load pickup availability
Brand Nedis Vendor Part Number CCGP32001BK30 EAN Number 5412810327805
You can use this DVI Dual Link cable to connect a computer with DVI output to a TV, monitor or projector with DVI input. Suitable for resolutions up to 2560 x 1600 @ 60 Hz (WQXGA) or 3840 x 2400 @ 30 Hz (WQUXGA).
A DVI cable only serves to transfer images. With Dual Link, two parallel connections are made, doubling the bandwidth. Higher resolution can be obtained with a dual link (Dual Link) than with a single link (Single Link).
Details
With this Nedis® DVI-D cable you can transmit digital signals, for example between a computer and an LCD monitor.
Case Quantity
20
Dimensions
| Length | 180 |
| Width | 30 |
| Height | 230 |
| Weight | 0.29 Kg |
Technical Specifications
Technical Specifications
Part Number CCGP32001BK30
Products in Package 1 pcs
Material PVC
Packaging Envelope
Connector-A DVI-D 24+1-Pin Male
Connector-B DVI-D 24+1-Pin Male
Cable type DVI
Connector Plating Nickel Plated
Cable Design Round
Cable Length 3.00 m
Cable Mantle Material PVC
Conductor Material Bare Copper
Connector Design Side-A Straight
Connector Design Side-B Straight
AWG Value 30
Connector Material PVC
Conductor Diameter 7 x 0.1 mm
Maximum Resolution 2560x1600
Output Current Adapter Cable
Resolution Standard WQXGA
Aspect Ratio 16:10
Adapter Design Straight
Product RRP £15.79Share
